General information

Bike Specifications

SKU

AAAG37723

Year

2023

Frame

Canyon Neuron:ON, Canyon Neuron:ON aluminium frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S) Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12x148 mm, Material: Aluminium (AL)

Battery

Shimano BT-E8036, Slimline Shimano battery with 630 Wh capacity Chargeable either in the bike, or when removed. Adapter for external charging not included.

Cassette

Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness., Gear range: 10-51

Chain

Shimano CN-M6100 12s

Crank Length

FSA CK 752 E-MTB, Number of chainrings: 1

Groupset

Shimano Deore

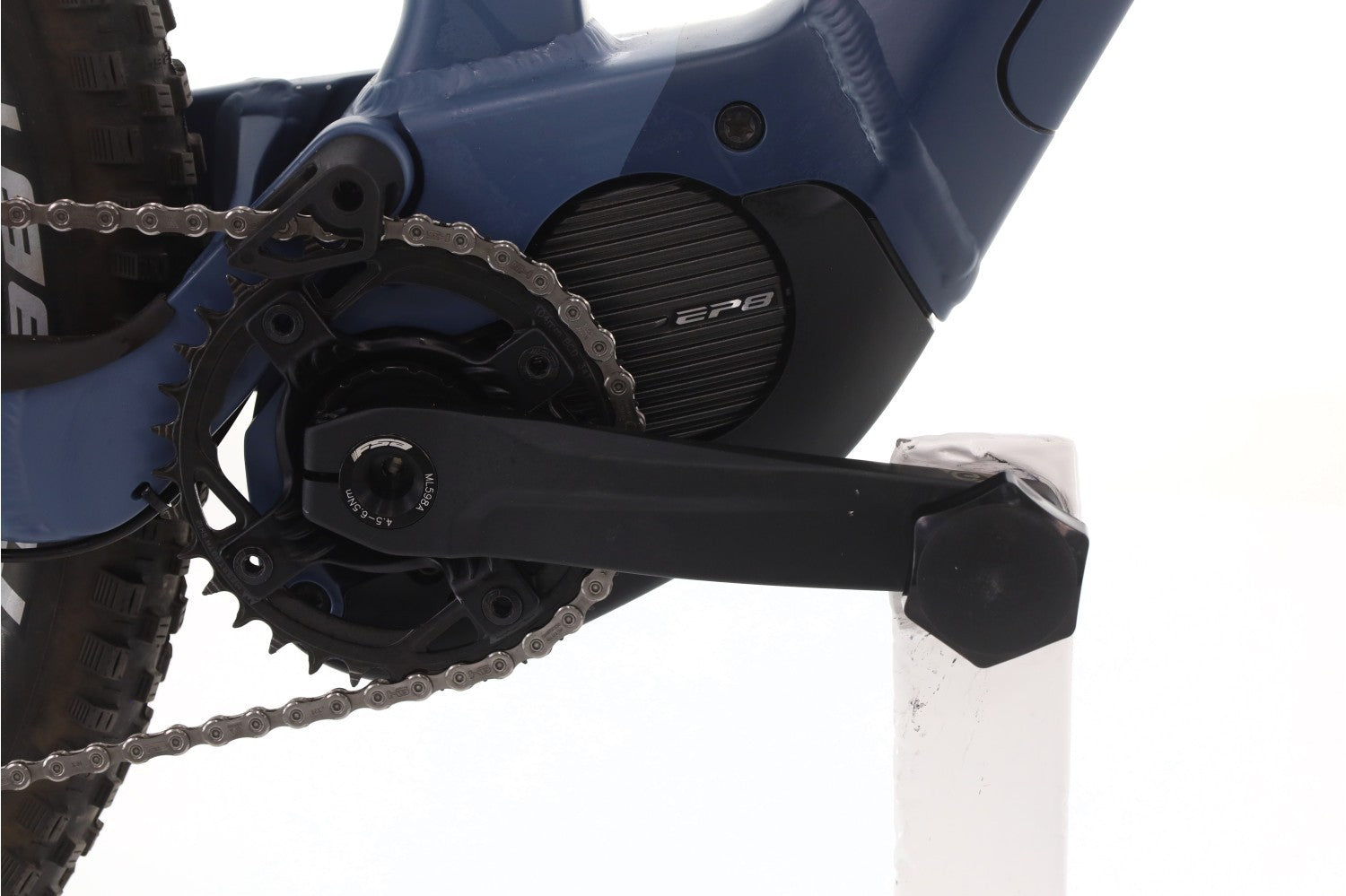

Motor

Shimano Steps EP8 Motor, High-torque motor Maximum torque: 85 Nm. 3 app-tunable support modes: Eco, Trail, Boost.

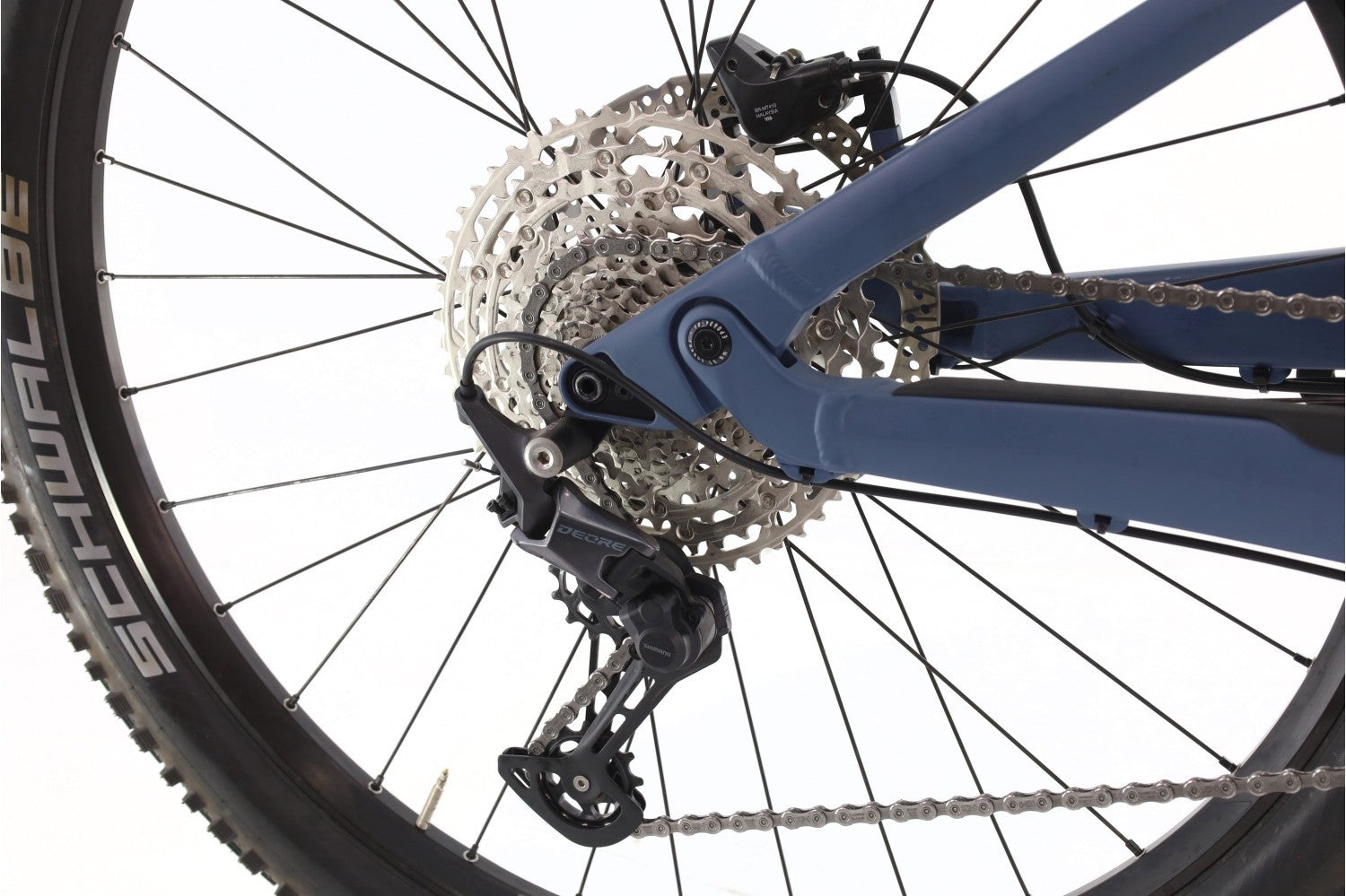

Rear Derailleur

Shimano Deore, 12-speed, 1x12 drivetrain for simpler, intuitive shifting Long-cage design is compatible with wide-range cassettes.

Brake Type

Disc

Brakes

Shimano MT420, Shimano 4-piston caliper provide 20% more stopping power than equivalent 2-piston version | Shimano BR-MT410 Deore, Deore-caliber, 2-piston disc brake, resin pads

Tyre

Schwalbe Nobby Nic Performance, 26, 29x2.6"

Wheels

Rodi TRYP 30

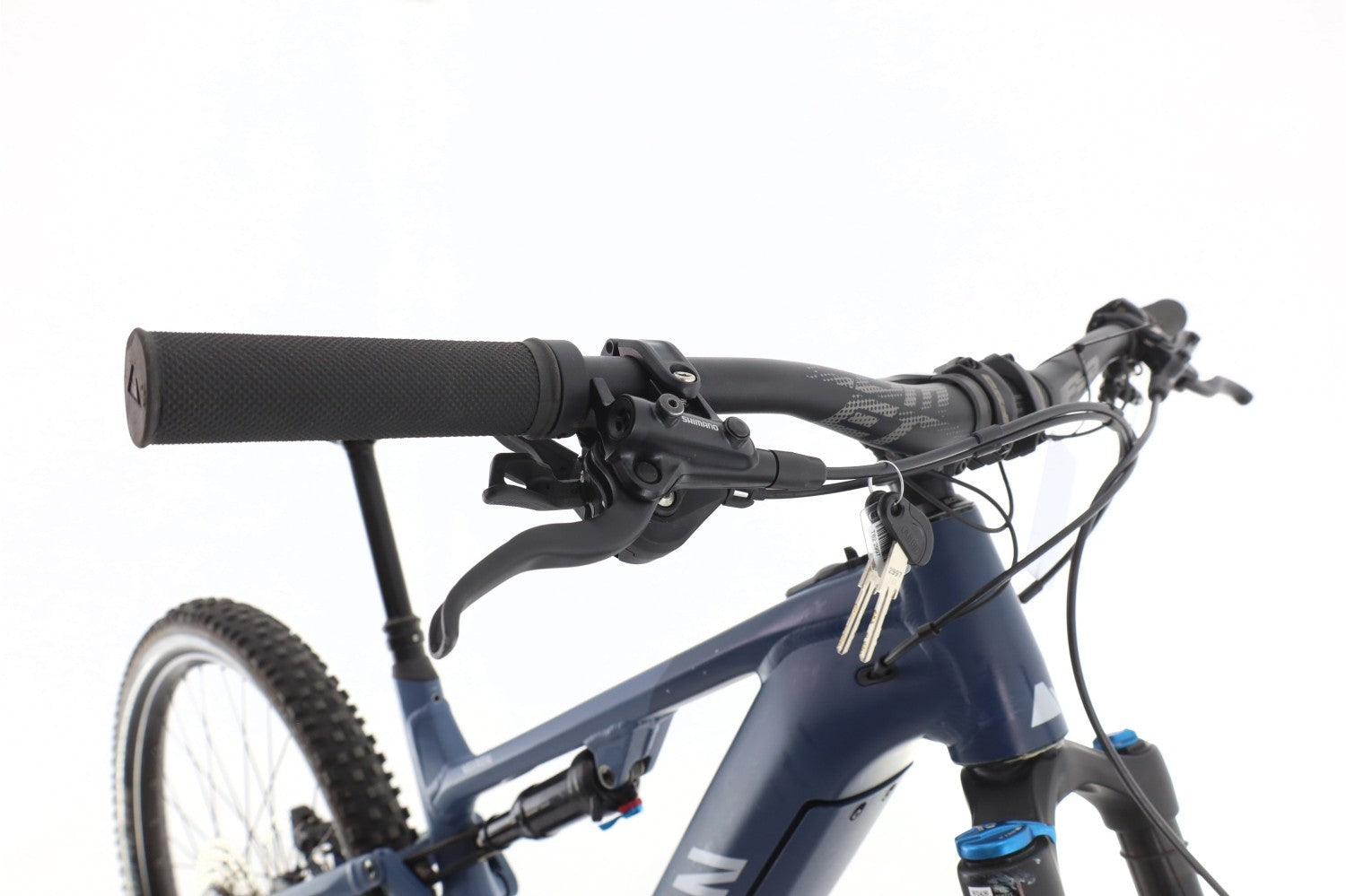

Handlebar

FSA Comet Alloy 35 Riser, Width: 760 mm, Rise: 25 mm

Saddle

Fizik Terra Alpaca X5

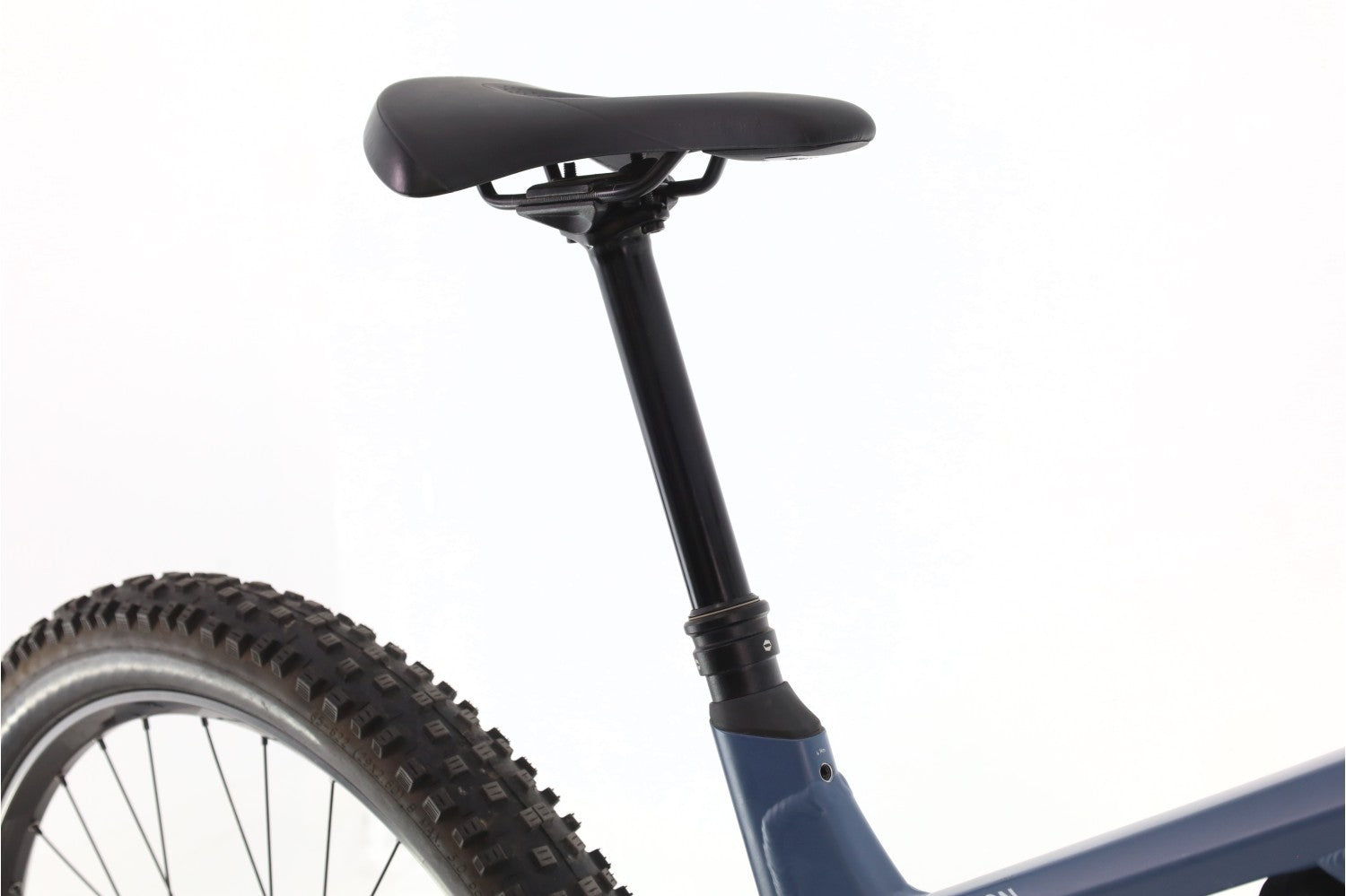

Seatpost

Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button With internal cabling., Clamp diameter: 30, 9 mm

Shift Levers

Shimano Deore M6100 12speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g

Stem

FSA Comet 35, Clamping Diameter: 35, 0 mm

Bottom Bracket

BSA, 73mm, threaded

Chain guide

Canyon Chainguide EP1001-02, This Canyon chain guide keeps the chain safe and secure on bumpy terrain

Disk rotors

Shimano SM-RT30 Center lock 203 mm, A big Shimano RT830 brake rotor delivers equally big stopping power | Shimano RT-EM300 STEPS, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.

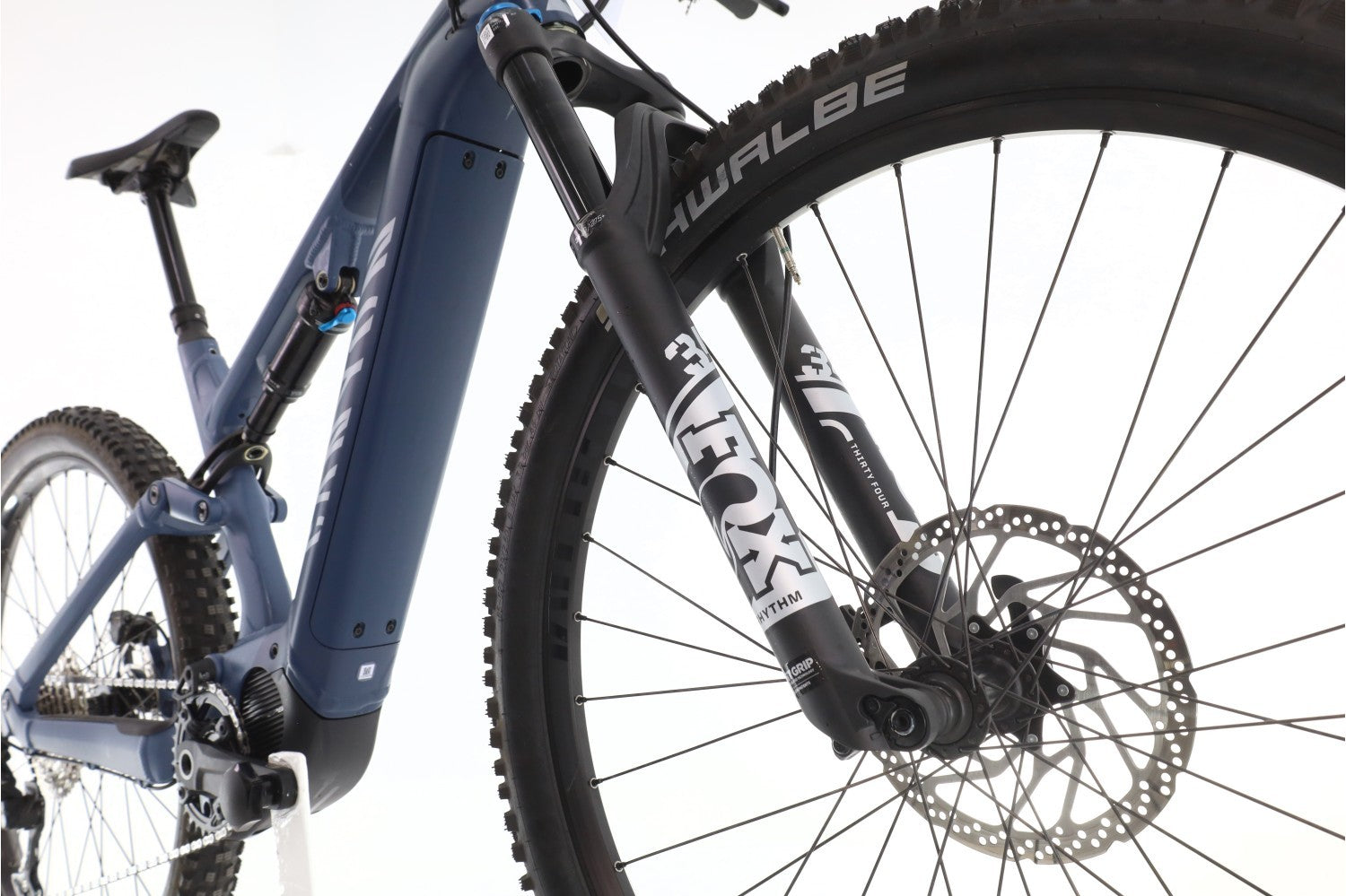

Fork

FOX 34 Rythm, Air-sprung all-mountain fork with 130 mm travel Fork shaft diameter: tapered, 1.5"-1 1/8". Stanchion diameter: 34 mm. Axle dimensions: 15 x 110 mm., Travel: 130 mm, Fork steer tube diameter: 1 1/8" - 1 1/4"

Gender

unisex

Grips

Canyon Lock-On, Get the ideal mix of incredible direct feedback and comfort The grips always stay firmly in place, thanks to the screw-tight clamp.

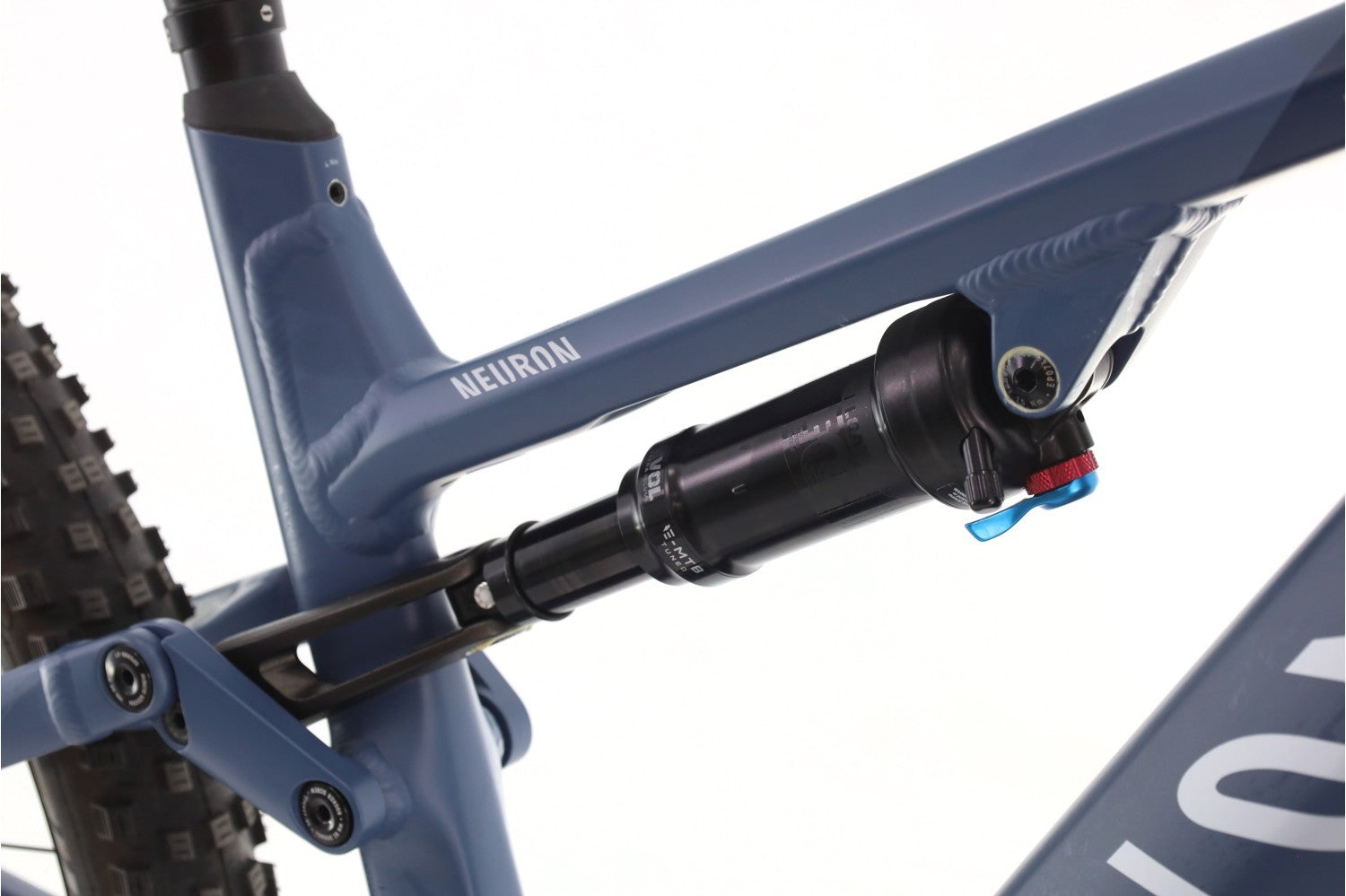

Rear Shock

FOX FLOAT DPS Performance, This air-sprung shock provides 130 mm of rear travel You can minimise rear triangle movement for more efficient climbing using the two-position platform lever. Eye-to-eye: 210 x 50 mm (M-XL), 190 x 45 mm (S) .

Remote

ELPA SHIM SC-E7000 Display Set 35
